A Hopper Lid
B Bean Hopper
D Coffee Ground Container
E On/Off Button
F Grind Timer Setting
G Main Power Switch

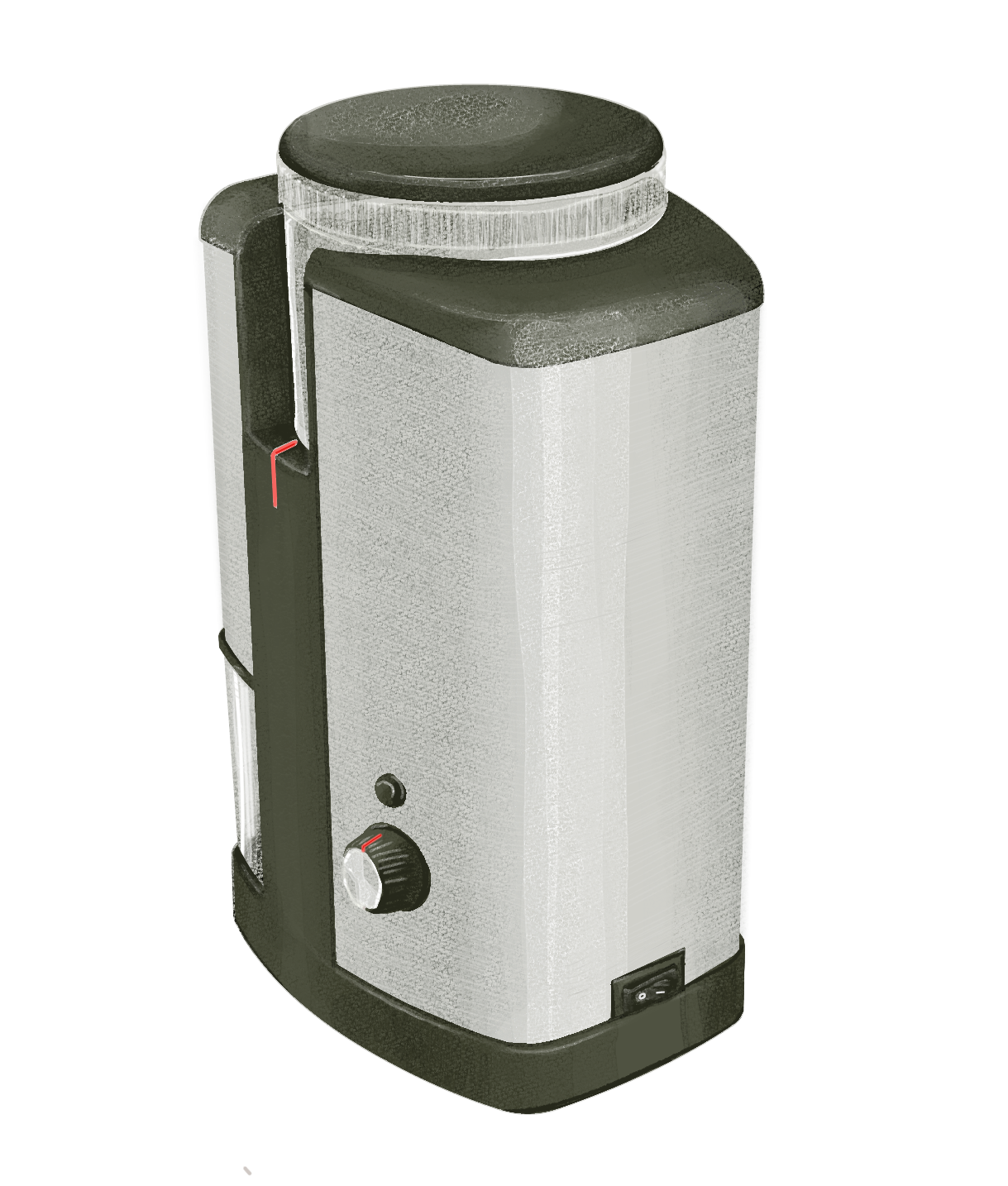

Place the grinder on flat level surface
Plug power cord into outlet. Turn on the Power Switch.
If the bean hopper and coffee ground container has not been properly locked into position, the coffee grinder will not start operation due to safety reason.

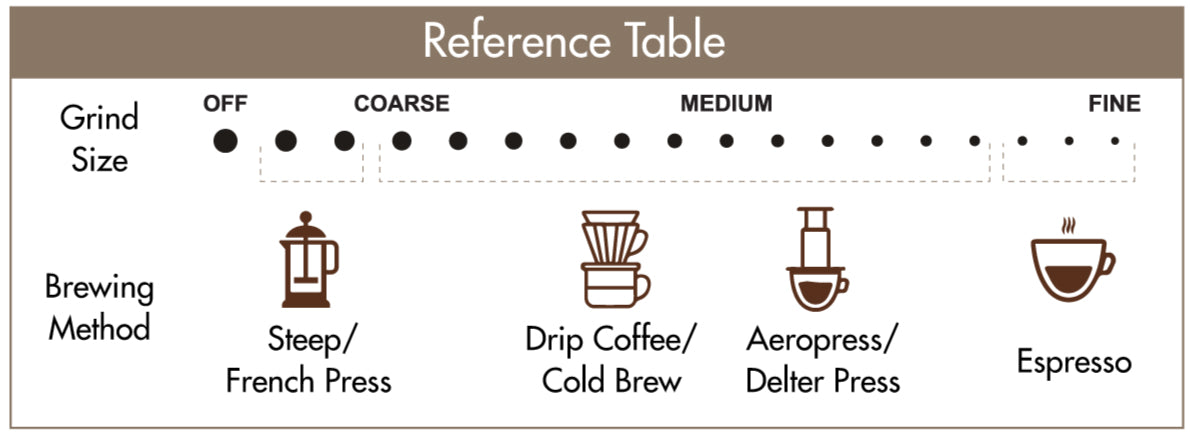

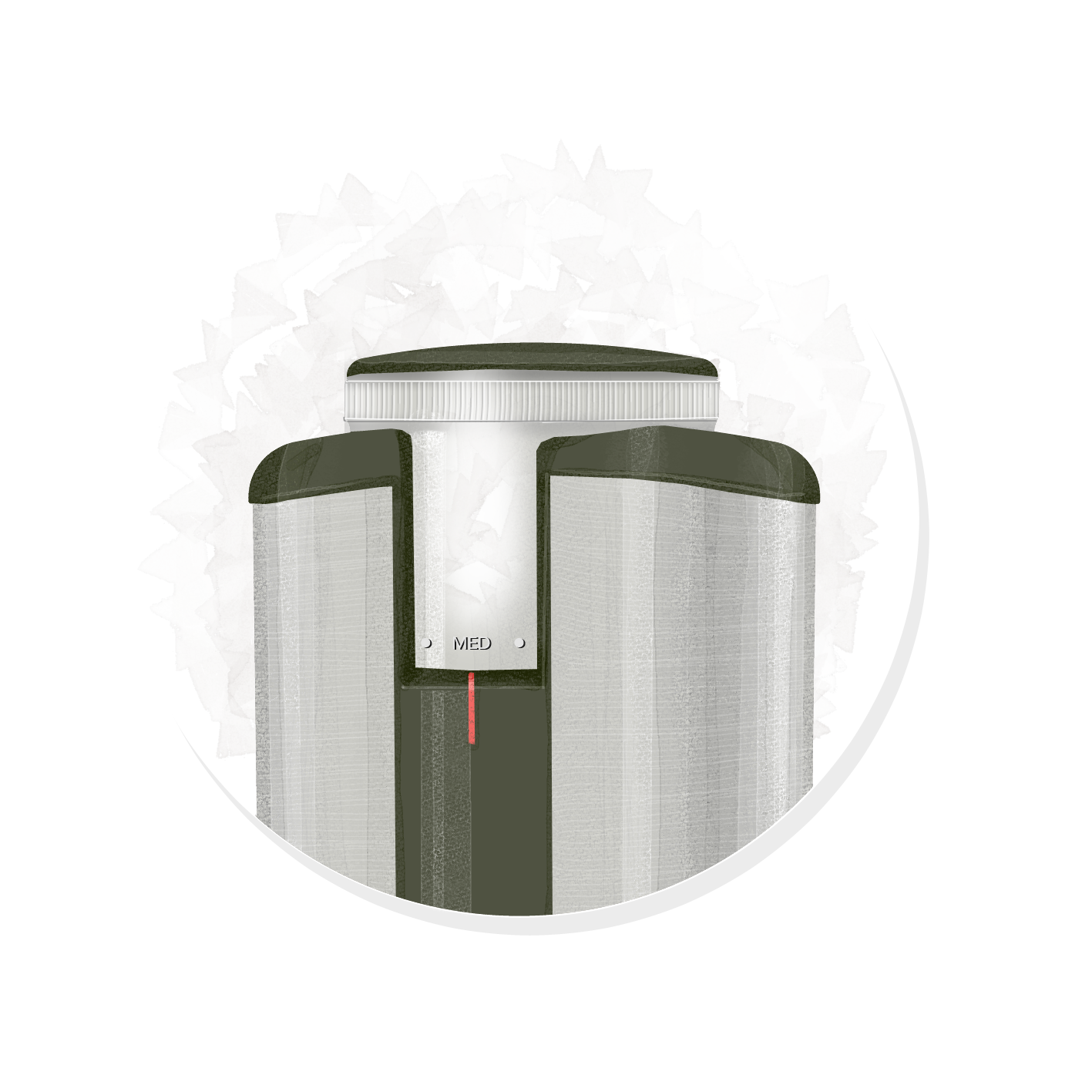

Select Grind Size
Select the desired grinding size by turning the grinding setting from fine to coarse.

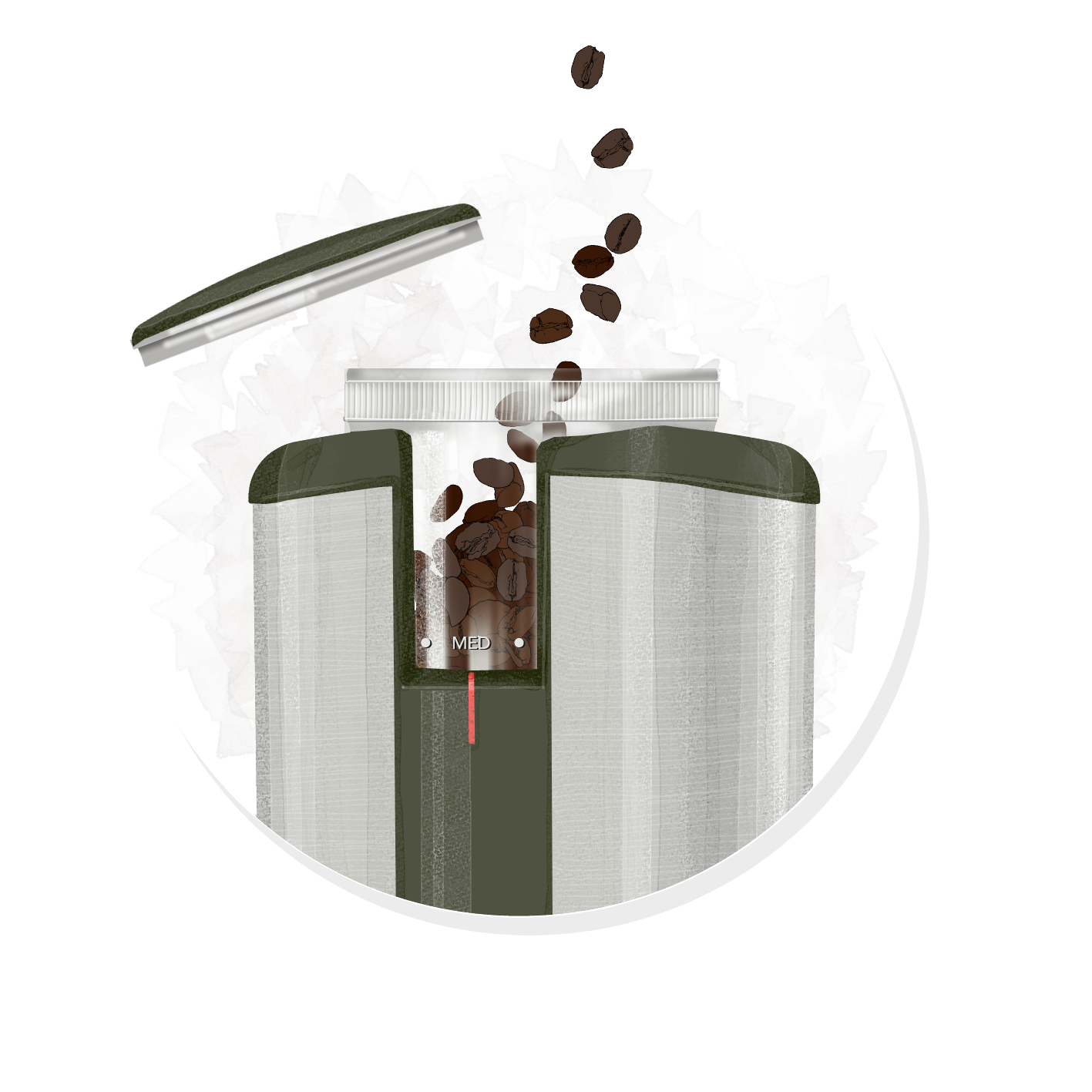

Prepare the Coffee Bean
Weigh the coffee beans based on your desired brew volume. Pour the beans into the hopper and close the hopper lid.
Coffee bean hopper capacity: 100g
Start the Coffee Grinding Operation

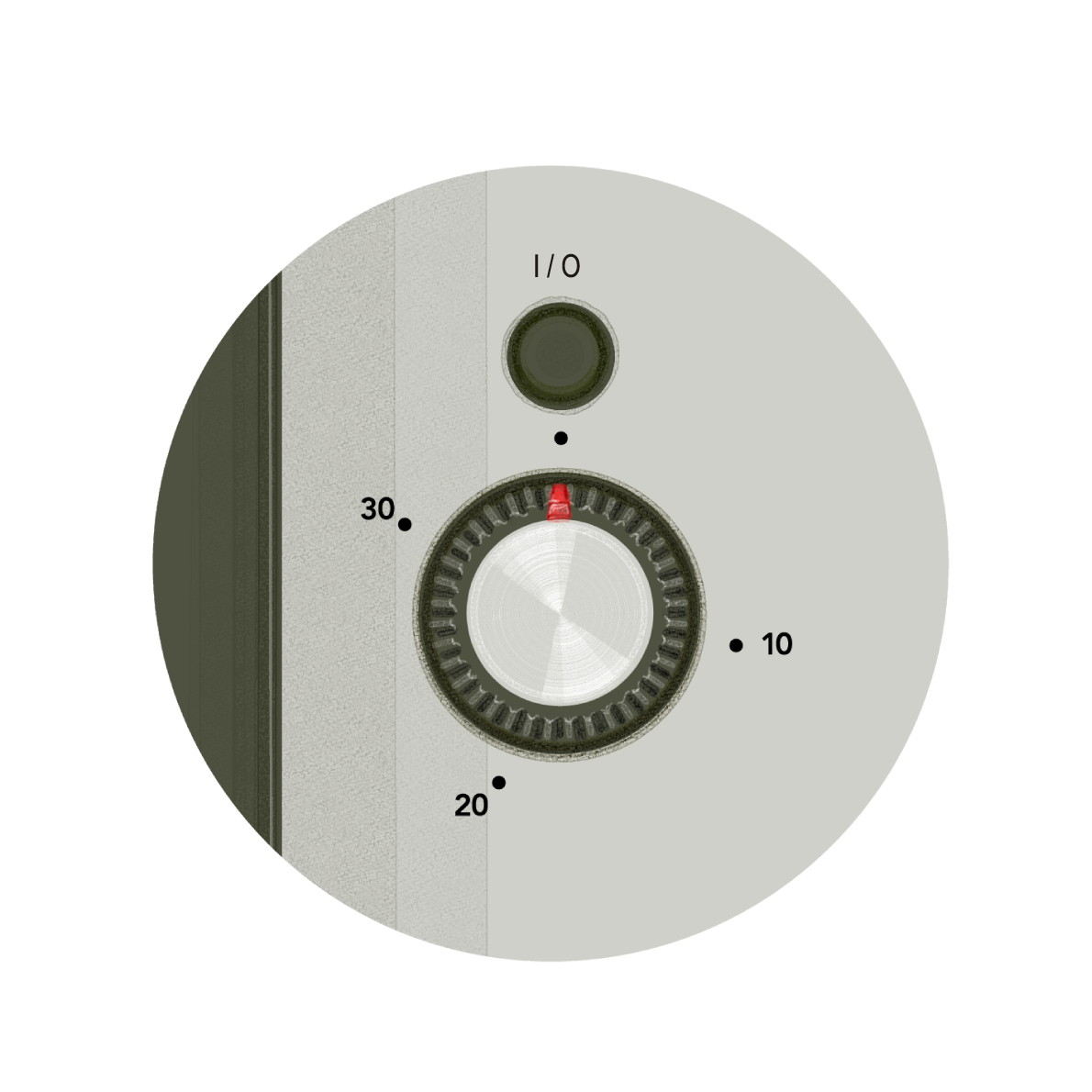

a. Turn the timer to the desired time. (adjust the grinding time to obtain the desired amount of coffee)
b. Press I/O button to begin grinding coffee. Ground coffee will begin to drop into the removable ground coffee container.
c. When the pre-set amount of timer is completed, the grinder will automatically turn off.
You can stop the grinding process at any time by pressing the I/O button.

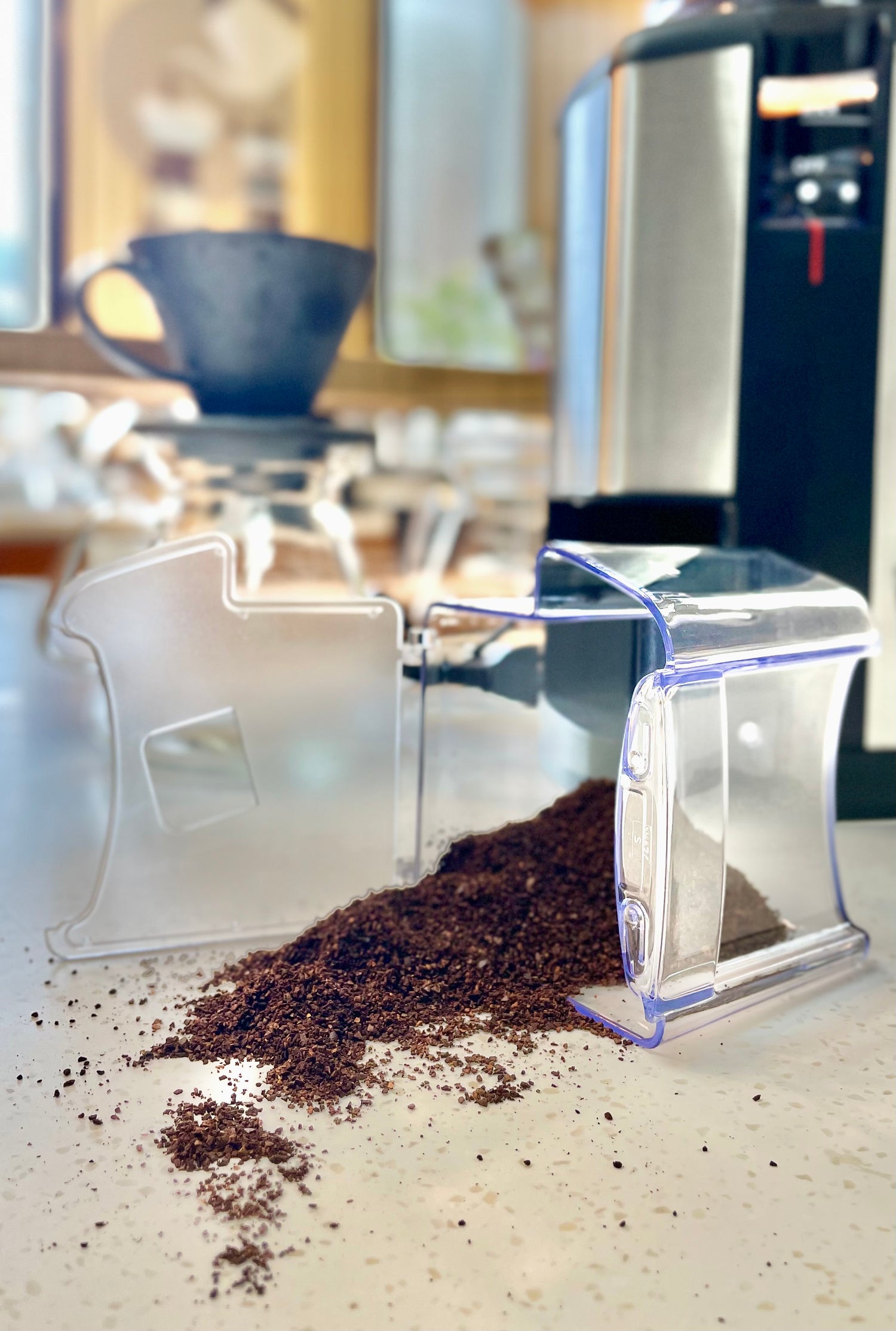

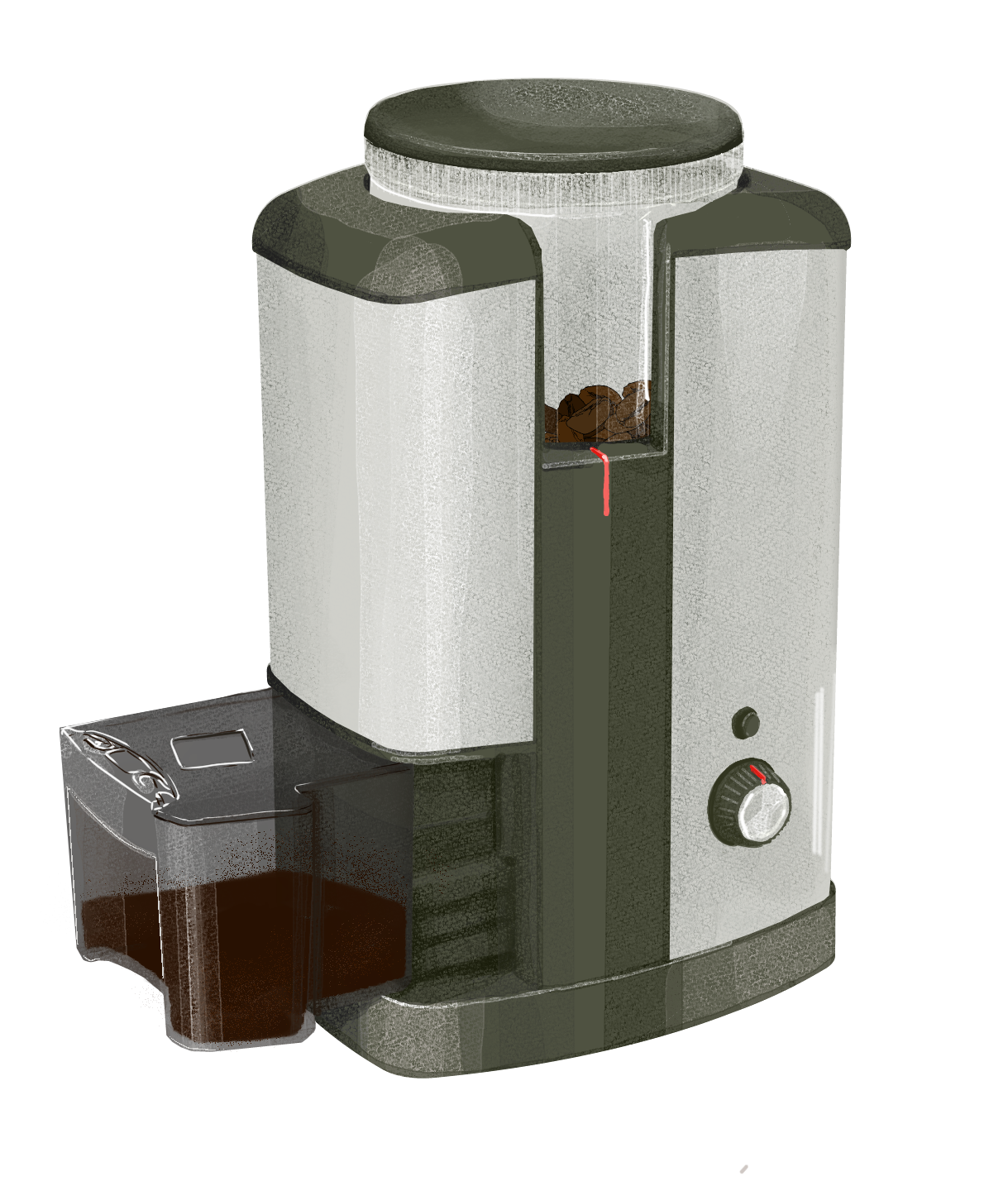

Pull out the coffee ground container
Dispense ground coffee directly into any brewing tool.
